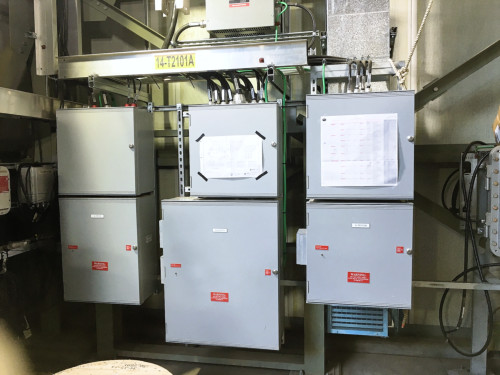

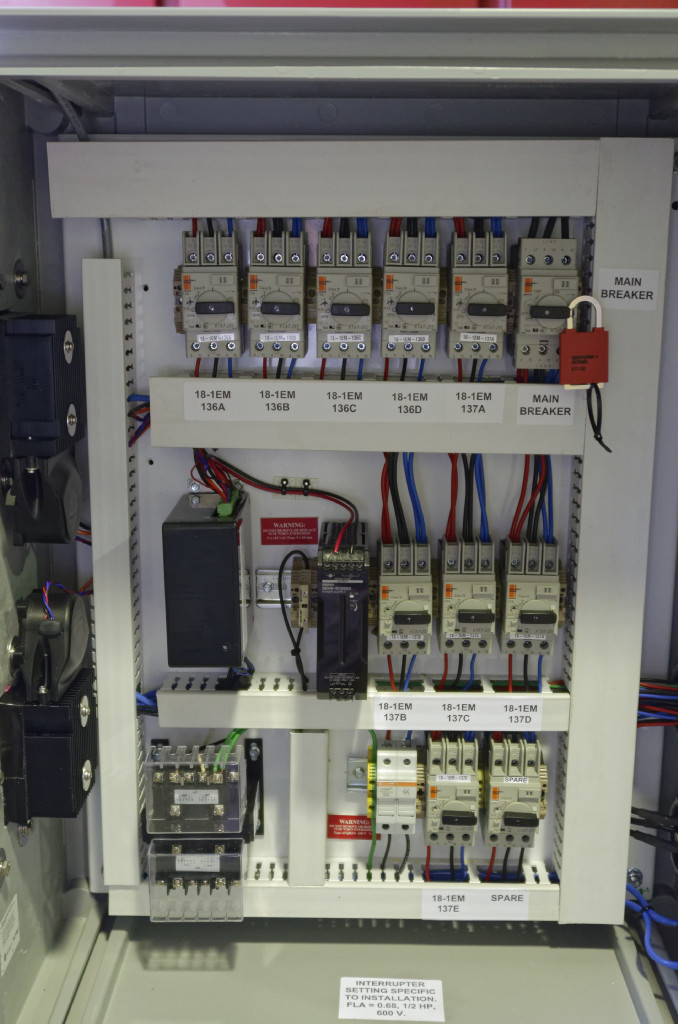

The Zone 2 Breaker Panel uses non-classified circuit breakers in an enclosure that keeps out explosive gas concentrations. The complete
panelboard is certified for use in Zone 2 and Class I Division 2 hazardous areas.
Feature Benefit:
Non-classified arcing and sparking components in hazardous locations. Components cost 1/10 as much as explosion-proof. Conforms to IEC standards for Zone 2
Breaker Panelboard Options:
Voltage:
- 120/208/240 VAC, 480Y/277 VAC, 600Y/347 VAC, 480 VAC, 600 VAC
- 3 Phase 4 Wire is standard. For single-phase or 3-phase 3-wire, please contact us.
Current:
- Bus rating 125 A, 225 A, 400 A, 600 A
Breaker Count:
- 12, 24, 30, 42 or 60 circuits without main breaker.
- 12, 24, 30, or 42 circuits with main breaker.
Ground Fault:
- GFCI breakers with 5 mA and 30 mA trip currents are available. Please contact us.
Interrupting Capacity:
- up to 65 kA depending on breaker type.
Components:
- Contactors, relays, pilot lamps, combination motor starters. Please contact us.
Specifications:
Dimensions:
- 42 circuit without Main breaker: 60” x 30” x 14” (153 x 77 x 36 cm)
- 30 circuit without Main breaker: 54” x 30” x 14” (137 x 77 x 36 cm)
- 30 circuit with Main breaker: 60” x 30” x 14” (153 x 77 x 36 cm)
Enclosure Type:
- FRP (Fibreglass) standard. All exterior hardware is stainless steel.
- Enclosure Type 4X.
Ambient Temperature Rating:
- -40 to +40 Degrees C available.
Certification:
- Third-party certified by QPS, a Nationally Recognized Test Laboratory in Canada
- Zone 2, Ex nR IIC T5 Gc
- Certified for use in Zone 2 and Class I Division 2 hazardous areas
